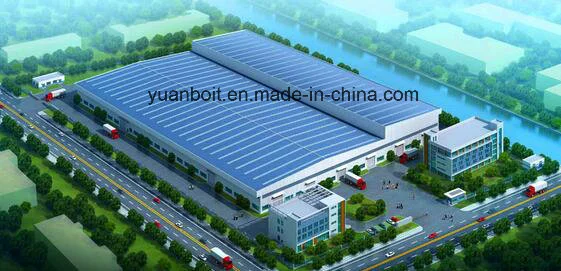

Product: steel structure warehouse
|Brand name||YB standard steel building, green and fast construction period Our Steel Structure Workshop, Prefabricated Steel Structure Building:|
1. Light weight, high strength, 50years durable use, no construction waste.
2. Quality certification ISO: 9001: 2008
3. Cost considering: Time saved, cost saved;
4. Easy move, materials can be recycled used, environmentally;
5. Used widely, used as factory, warehouse, office building, aircraft hangar etc;
6. Structural durabilities, easy maintenance
|Design Parameters||1)Live load on roof(KN/M2)|
3)Snow load (KG/M2) if have
4)Earthquake load if have
5)Crane (if have), Crane span, crane lift height, max lift capacity, max wheel pressure
1. Single slope, Double slope, Multi-slope.
2. Single span, Double-span, Multi-span, Single floor, Double floors.
|Column and beam|| |
1. Material Q345(S355JR)or Q235(S235JR) steel.
2. All bolts connecting.
3. Straight cross-section or Variable cross-section.
|Surface treatment|| |
Hot-dip galvanized or painted.
|Roof and wall panel|| |
1. EPS ,PU ,Rockwool sandwich panel.
2. Single colorful corrugated steel sheet0.326~0.8mm thick, YX28-205-820(820mm wide).
3. Sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, 950mm or 960mm width.
X or V as well as other type bracing made from angle, round pipe etc.
Semi-transparent skylight belts, Ventilators, down pipe, outer gutter etc.
PVC or Aluminum Alloy.
C or Z purlin
Size from C120~C320, Z100~Z200.
Sliding or Rolling up shutter door.
|1. Resisting winds and seismic impacts.|
2. Bearing heavy snows.
1. Making the design,drawing and quotation according to your requirements very soon.
2. Making the quotation according to your drawings.
3. Giving you the satisfying opinion to your project.
ISO9001:2008, AWS certified welder passport,SGS,BV.
Material: High Quality Material
Others: As Per Clients' Requirement.
This building can used forPrefabricated House,steel structure building,steel structure workshop, steel structure warehouse,steel structure storage,steel structure station ,light steel structure etc.
LENGTH*WIDTH* EAVE HEIGHT
SINGLE SPAN, DOUBLE SPAN, MULTI-SPAN. ONE FLOOR, TWO FLOORS, THREE FLOORS.
3. BUILDING FOUNDATION:
STEEL FOUNDATION WITH ANCHOR BOLTS.
4. COLUMN & BEAM:
MATERIAL: Q235 & Q345 & Q420.
X or V TYPE BRACING MADE BY ANGEL STEEL, ROUND Bar etc.
6. Wall & Roof C or Z PURLINE:
7. WALL & ROOF PANEL:
SINGLE CORRUGATED STEEL SHEET;
SANDWICH PANEL INSULATION WITH EPS, PU, ROCK WOOL etc.
8. WINDOW & DOOR:
PVC or ALUMINIUM ALLOY WINDOW;
ELECTRIC ROOL-UP DOOR;
SLIDING DOOR BY SANDWICH PANEL OR SINGLE CORRUGATED STEEL SHEET.
9. Surface Treatment:
HOT GALVANIZED COATING
Spray-Painting, Any color, according to your request.
SEMI-TRANSPARENT SKYLIGHT BELTS;
VENTILATORS; DOWN PIPE; GUTTER;
High quake-proof, water proof and fire proof
Easy to install and maintenance
Fast construction, save time and labor cost
Prefabricated and customized design
High space efficiency
Life time: Over 25-50years
DELIVERY & PACKING:
With more than 4000tons capacity each month, deliver time will better than local manufacturer.
Packed in container by sea or by train, with stable package for no damage during transpotation.
